Control of brush motors, series motors, electric tricycle for travel, recreational vehicles, electrical machinery and equipment, floor sweeper, system, ceramic machine, throwing cars, brick car, clean cars, solar boats

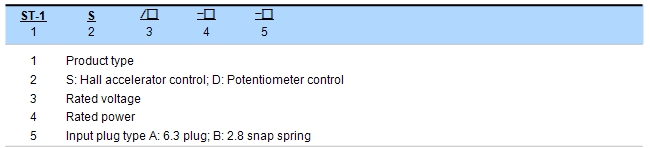

SAYOON MODEL IMPLICATION:
USES:
Control of brush motors, series motors, electric tricycle for travel, recreational vehicles, electrical machinery and equipment, floor sweeper, system, ceramic machine, throwing cars, brick car, clean cars, solar boats
TECHNICAL PARAMETERS: (Version 1.32)
SAYOON Product Type | ST-1S |
| Rated power | 350W;500W |
| Rated voltage | 12V;24V;36V;48V |
| Rated current(A) | 15A;20A |
| Throttle signal types | 0.8-4.2V; 0-5k |
| Effective control of voltage range | 1.8-3.5V |
| Rated power loss | ≤5W |
| Throttle interface type | Three-wire 2.8 insert(default) |
INSTALLATION DIAGRAM:
WIRING DIAGRAM:
PLUG TYPE:
 |  |
MECHANICAL ABILITY and USE of the ENVIRONMENT:
| Ambient temperature | -30~+85℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP55 |
ORDER INSTRUCTION:
SAYOON Product Type | ST-1S |
| U.N.W. | 318g |
| Package QTY. | 50 PCS |
| Meas.(cm) | 60*27.5*29.5 |
PRODUCT PICTURE:
DOWNLOAD DATA:
Tips: if you want to understand the technical details of parameters more SAYOON ST-1S Brush DC Motor Controller, other SAYOON or the product of information, please visit SAYOON electric official website www.pmp3.cn/en, or send mail to [email protected] , ZHEJIANG SAYOON ELECTRIC CO., LTD. will welcome your arrival.
